STT Type Series Liquid furnish system Muffler with Sintered Brass Muffler

FOB Reference Price:Get Latest Price
US $0.5-50 / Piece | 100 Piece/Pieces 1pc Liquid furnish system Muffler sample is available (Min. Order)
Supply Ability:
2000000 Piece/Pieces per Month sintered Liquid furnish system Muffler
Port:
NINGBO
Report Suspicious Activity
Overview
Quick Details
Type:
Muffler
Size:
Customaztion
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Maosheng Liquid furnish system Muffler
Model Number:
STT Type Liquid furnish system Muffler
Warranty:
1 Years
Product Name:
Liquid furnish system Muffler
Material:
Steel Copper Plsted Joint and Stainless Steel& Bronze Powder
Usage:
Sintering
OEM,ODM:
Welcome
Quality Standards:
DIN;JIS;GB
Types of:
sintered metal filter
Shape Type:
Cap/Bushing/Bar/Disk/Special
Sample Lead Time:
7-15 days
Quality Management Certificate:
ISO 9001:2008
Form of sale:
OEM & ODM Manufacture
Packaging & Delivery
Packaging Details
Package of Liquid furnish system Muffler:Products packed by plastic bag, each bag contain 100pcs to 500pcs or 5kg Max, depends on products size and order quantity; packed by cartons.
Delivery Time
we delivery Liquid furnish system Muffler within 30 days

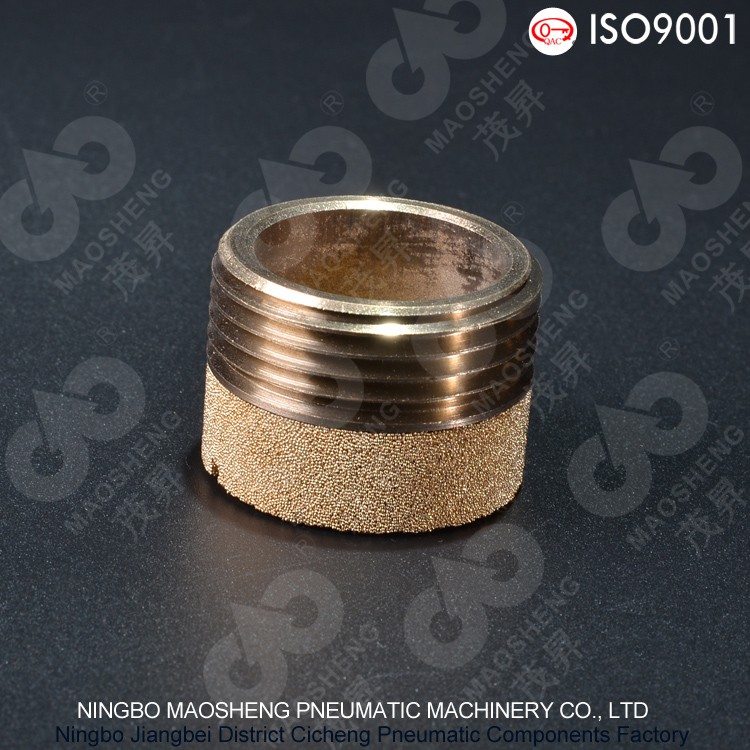

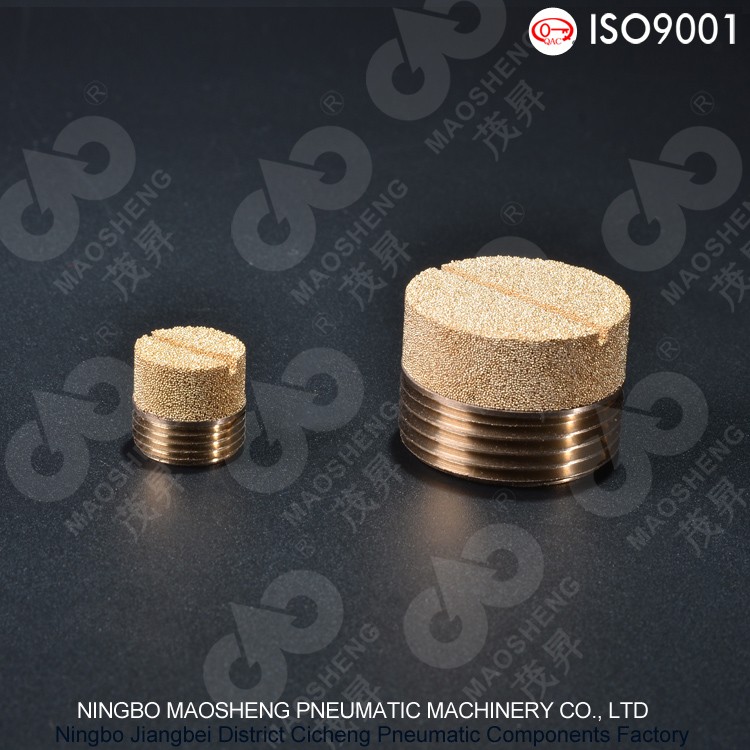

STT Type Series Liquid furnish system Muffler with Sintered Brass Muffler

MAOSHENG muffler is a kind of device which can allow the airflow to pass through, but also can prevent or reduce the sound transmission. The muffler can block the propagation of sound waves and allow the airflow to pass.

                                                                                                                                                                      Particular Characteristics:

– The mean pore pitch is variable, from 1 µm to 250 µm.

– They are depth silencers which efficiency is very high.

– Work at high temperature and high pressure without deformation.

– The chemical resistance is good

– Silencers can be weld and machine after final shape, so they can be adapted to specific assembling purpose.

– Maosheng sintered stainless steel silencer element can make its cleaning easy, so they are reusable.



Specifications
1 Sintered Air/oil filter
2 ISO 9001:2008
3 SGS / RoHs Certificate
4 OEM available.
5 Filtering degree 2micron-150micron.





Product Dimenstions

STT Type Series Liquid furnish system Muffler with Sintered Brass Muffler

CodeProduct Model      Joint Diameter CD
mm
1.1.21.1.81.01STT-6G1/8"9.5
1.1.21.1.82.01STT-8G1/4"12.5
1.1.21.1.83.01STT-10G3/8"16.2
1.1.21.1.84.01STT-15G1/2"20.5
1.1.21.1.85.01STT-20G3/4"26
1.1.21.1.86.01STT-25G1"33



CodeProduct Model      Joint Diameter CD
mm
1.1.21.2.81.01STT-6ZG1/8"9.5
1.1.21.2.82.01STT-8ZG1/4"12.5
1.1.21.2.83.01STT-10ZG3/8"16.2
1.1.21.2.84.01STT-15ZG1/2"20.5
1.1.21.2.85.01STT-20ZG3/4"26
1.1.21.2.86.01STT-25ZG1"33







Q1. What is your terms of payment?

A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the  copy of B/L.For long term business relations, we have more advantage terms for payment.



Q2. What is your terms of delivery?

A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.



Q3: What is the lead time?

A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.



Q4: How about tooling Charge?

A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.



Q5. What is your Liquid furnish system Muffler sample policy?

A: We are glad to send Liquid furnish system Muffler samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.



Q6. Can you produce according to the samples or drawings?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q7: How to confirm the quality with us before starting to produce?

1) We can provide samples and you can  choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.



Q8: How to solve the quality problems after sales?

A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we  confirm the problems.



Q9. What is your terms of packing?

A: Generally, we pack our goods in neutral cartons. If you have legally registered patent,  we can pack the goods by your logo after getting your authorization letters.



Q10. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe  standards.
